MIL-DTL-82646B (OS)
c. The crosshead speed shall be 2 inches per minute (5.08 cm/minute)

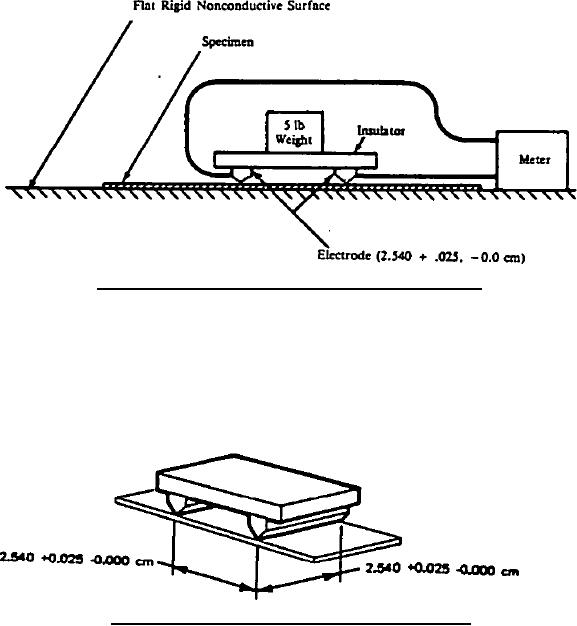

FIGURE I. Schematic of electrical resistivity measuring arrangement.
NOTES:
1. The electrodes shall be metallic with the edges touching the specimen ground flat, polished and clean.
2. The electrodes shall be permanently attached to an insulator, having a minimum thickness of 0.60 cm.
3. The electrodes contacting the specimen shall lie in the same plane.
4. The distance between the knife edge of the electrodes shall be 2.540 + .025, -0.0 cm.
5. A Simpson Model No. 260 volt-ohm-milliammeter or equivalent shall be used.
FIGURE 2. Alternate aspect of insulator plate-electrode assembly.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified in the
contract or order (see 6.2). When actual packaging of materiel is to be performed by DOD personnel or
in-house contractor personnel, these personnel need to contact the responsible packaging activity to
ascertain packaging requirements. Packaging requirements are maintained by the Inventory Control
Point's packaging activities within the Military Service or Defense Agency, or within the military
service's system commands. Packaging data retrieval is available from the managing Military
Department's or Defense Agency's automated packaging files, CD-ROM products, or by contacting the
responsible packaging activity.
6. NOTES
(This section contains information of a general or explanatory nature which may be helpful, but is not
mandatory.)
7
